Base64 Encode / Decode Processors

The “Base64 Encoder” and “Base64 Decoder” processors are installed with the Dataristix Application. The “Base64 Encoder” processor converts an array of bytes into a Base-64 encoded string for each connected tag, and the “Base64 Decoder” processor converts a Base-64 encoded string into an array of byte values for each connected tag. These processors are available in Dataristix version 3 and later.

Add to Task

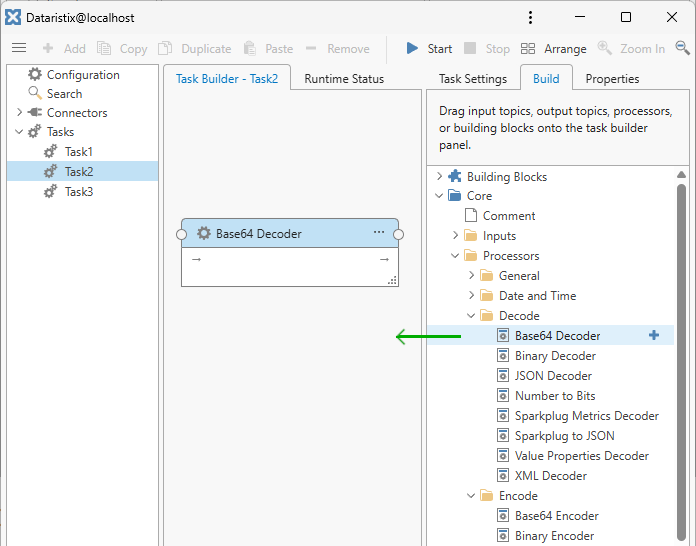

Add the respective processor to a task by dragging it from the “Build” panel onto the task’s “Task Builder” panel.

Processor Configuration

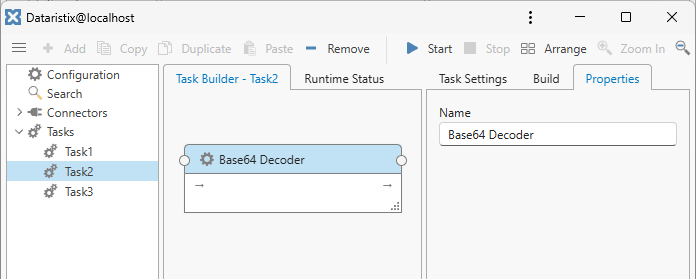

Select the respective processor item in the “Task Builder” panel to view its properties.

You can change the following properties.

• Processor Topic Name

  You can change the processor topic name to suit.
